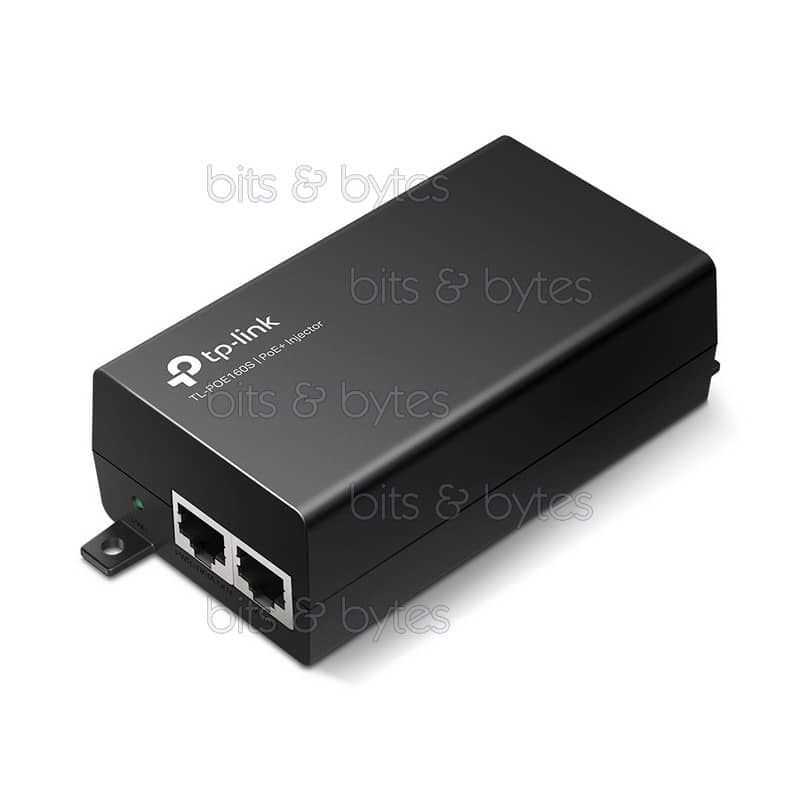

TP-Link TL-POE160S Gigabit PoE+ Injector (30 Watts)

TP-LINK

Be the first to review this product

Hardware Version: 1.0

Datasheet (PDF)

Installation Guide (PDF)

€22.42 €19.00

Availability: In stock

Only 4 left

SKU

370255

Details

TP-Link TL-POE160S PoE+ Injector

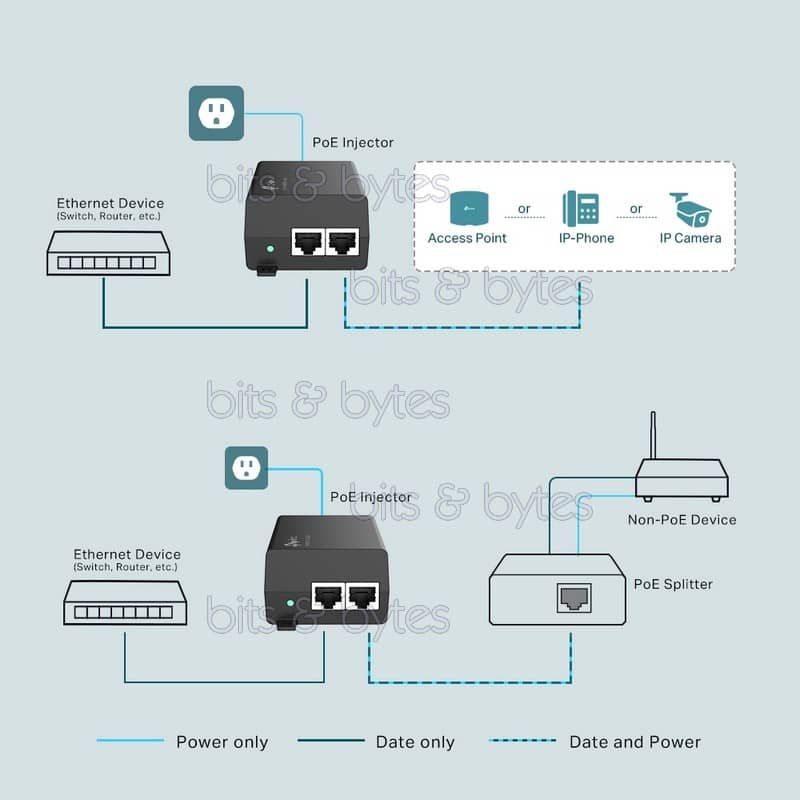

The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as Access Points (AP), IP Camera or IP Phone, etc.

Features

2 Gigabit ports ensure faster transmission
Complies with IEEE802.3af/at standards, supplies up to 30 W
Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device's need
Wall-mounting and desktop design accommodate most installation scenarios
Plug & Play installation, requires no configuration
Integrated power supply

Specifications

NETWORK
Standards and Protocols	IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
GENERAL
Certification	FCC, CE, RoHS
Environment	Operating Temperature: 0°C to 40°C Storage Temperature: -40°C to 70°C Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing
PACKAGE CONTENTS

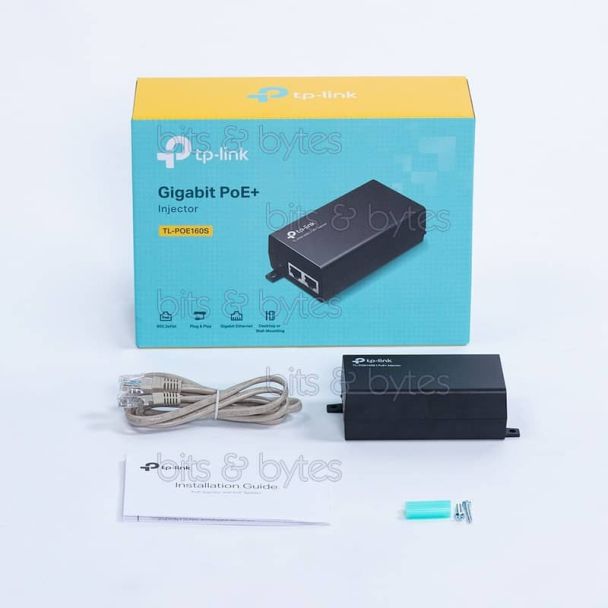

Package Contents	PoE+ Injector TL-POE160S Installation Guide Power Cord**RJ45 Cable Wall Mounting Kits
HARDWARE FEATURES
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

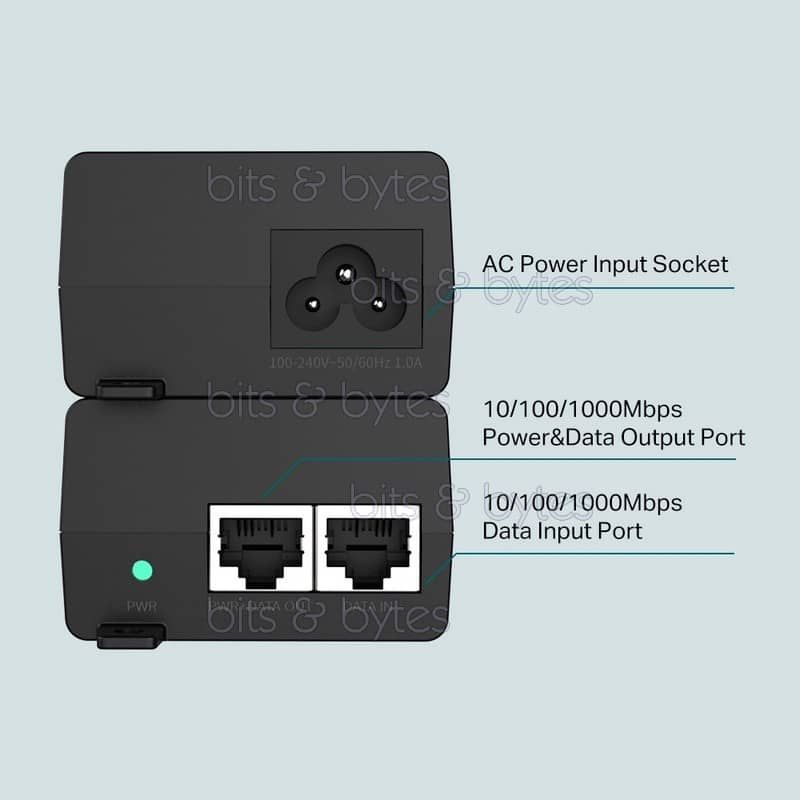

Ports	1 10/100/1000Mbps RJ45 data-in port 1 10/100/1000Mbps RJ45 power+data-out port 1 AC socket
Power Consumption	Input: 100-240 V, 50/60 Hz Output: Auto-determine the necessary power requirements (max. 30 W)
Basic Function	Auto-Sensing Algorithm enables providing power with 802.3af/at PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play
LED Indicator	ON: Supplying power normally OFF: No power supply
Dimensions (WxDxH)	125 x 59.4 x 36.8 mm

More Information

More Information
Colour	Black
Connection	RJ45
Type	PoE
Ports	N/A
Speed	Gigabit
Form Factor	N/A
Interface	Ethernet
