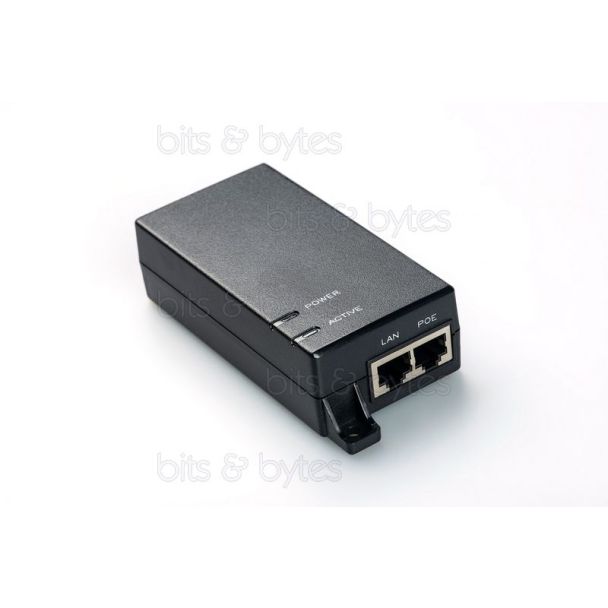

Digitus Gigabit PoE Injector

The Digitus PoE Injector minimizes your cabling when installing PoE compatible devices such as IP network cameras (where an ethernet cable is used for the data feed and power supply for the devices). This eliminates the need to install a separate power line, and you can extend your network where there are no power outlets or power lines. The injector is fully compliant with the IEEE 802.3af PoE standard and delivers output power of up to 15.4W.

Technical details

• Meets the 802.3af PoE standard
• 48V output voltage, 15.4 Watt
• RJ45 LAN input
• LAN (RJ45) output, power supply via pin: 4/5(+), 7/8(-)
• Cable connection: 10/100/1000 Mbps
• The output has a current limit, a short-circuit protection and an automatic terminal device detection and classification
• Power consumption: 1.6W max.
• Power supply: 100-240V AC, 0.8A
• Operating temperature: -5°C - 45°C
• Dimensions (mm): 134(L) x 56(W) x 33(H)
