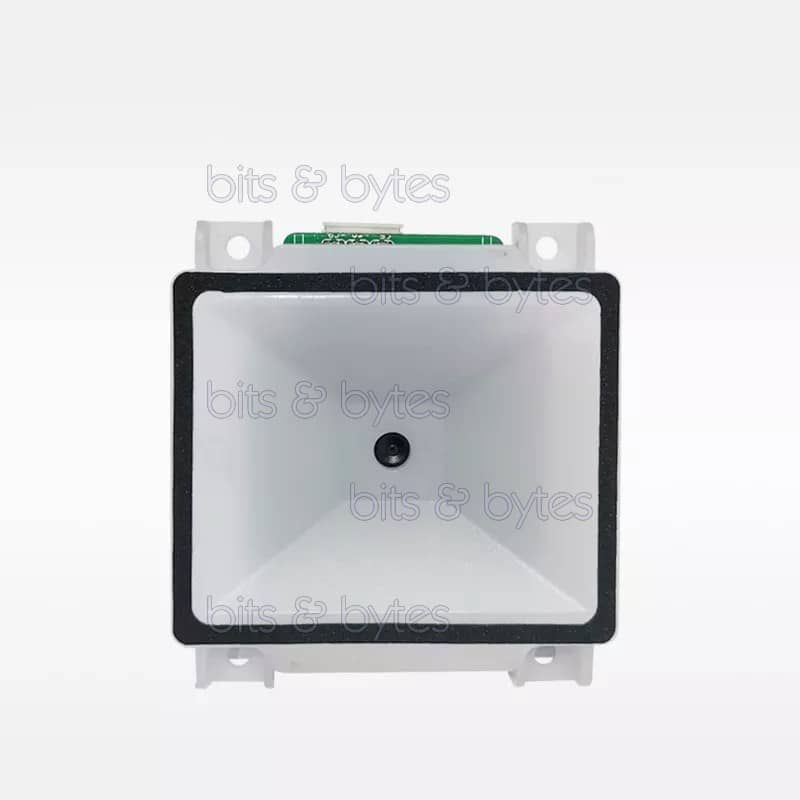

Winson Z4P-520 CMOS 2D Embedded Module Barcode Reader (USB)
Embedded scanner module
Designed to be installed in a custom place for Smart Access Control, Locker, Scan Code Gun, Channel Gate, Station Inspection Ticket, Smart Self-Service Terminal, Supermarket, Retail Store, POS System, Cash Registers, Warehouse Management, Conference Ticketing, etc.
Wide-angle scanning, wide recognition range
Wide-angle scanning and large-view window. The angle of view is 74° horizontally and 58° vertically. When the barcode enters the scanning recognition range, it can trigger reading, which is highly efficient and sensitive. It reads from screens or paper material.
Support multiple interfaces
- USB HID keyboard interface
- TTL serial port (against order)
- RS232 serial port (against order)

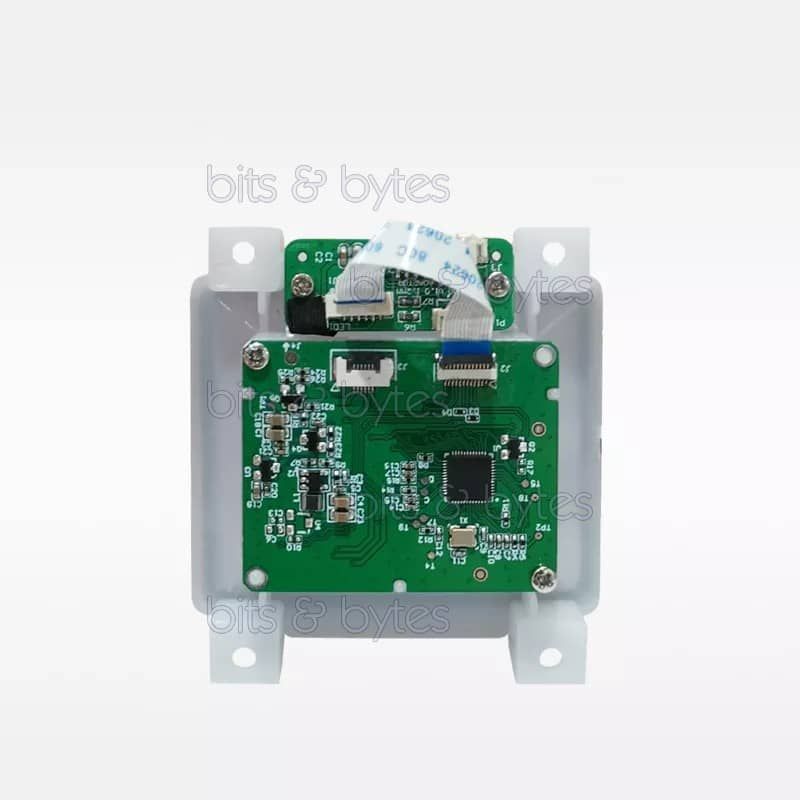

Mounting orientation

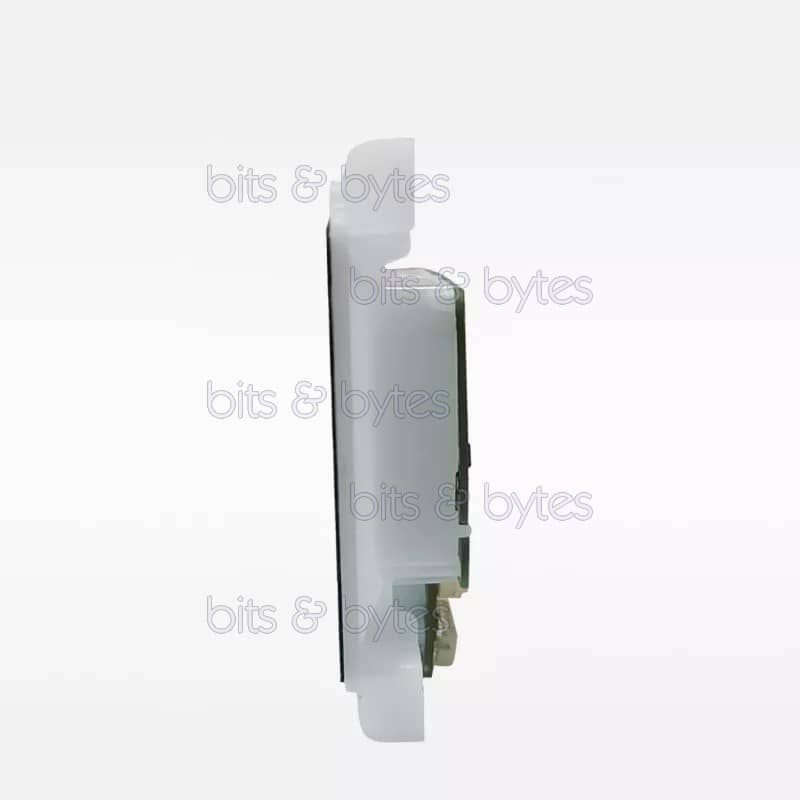

There are 4 machine screw mounting holes in the four corners of the Z4P. In the image below you can see the dimensions of the scanner and also the scanning angle of the barcode.
front view and side view - sizes are in mm | |
Electrical characteristics |
|
Interface Supported |
|
Input voltage | 5V DC |
Current | 140 mA max. |
Scanning characteristics |
|
Image sensor | CMOS Array Sensor |
Sensor resolution | 640 x 480 pixels |
Field of view | 74°(H), 58°(V) |
Min. Resolution | 1D ≥ 5mil 2D ≥ 10 mil |
Light source | White light filling (6500K LED) |
Scanning angle |
|
Decode capability |
|
Durable characteristics |
|
Temperature |
|
Humidity | 5% ~ 95% non-condensing |
Physical characteristics |
|
Dimensions (LxWxH) | 53.5mm x 36mm x 16mm |
Weight | 15g |
Indicator | Beeper & LED |
Colour | White |
---|---|
Scanner | CMOS |
Scan Engine | 2D |
Type | Fixed |
Interface | USB 2.0 |
Storage | N/A |
