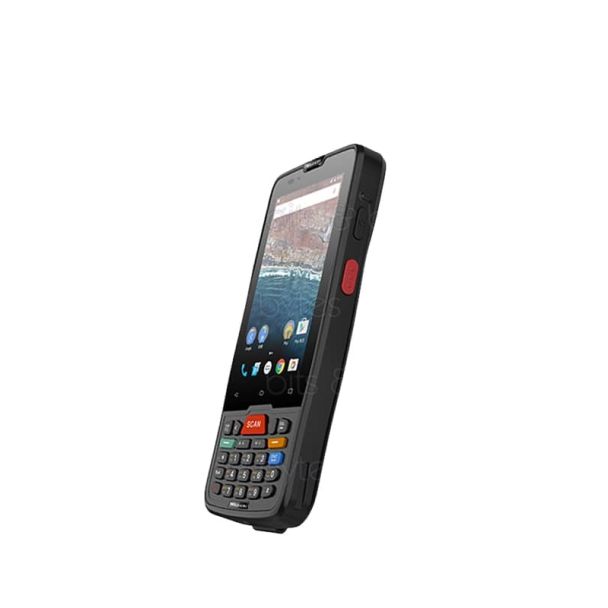

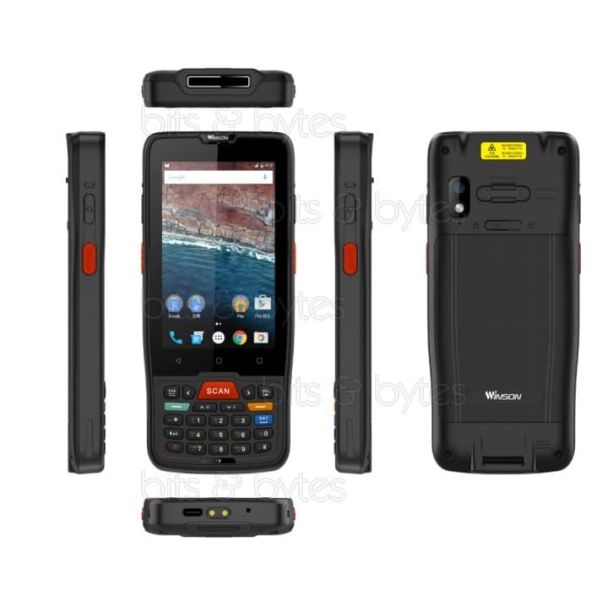

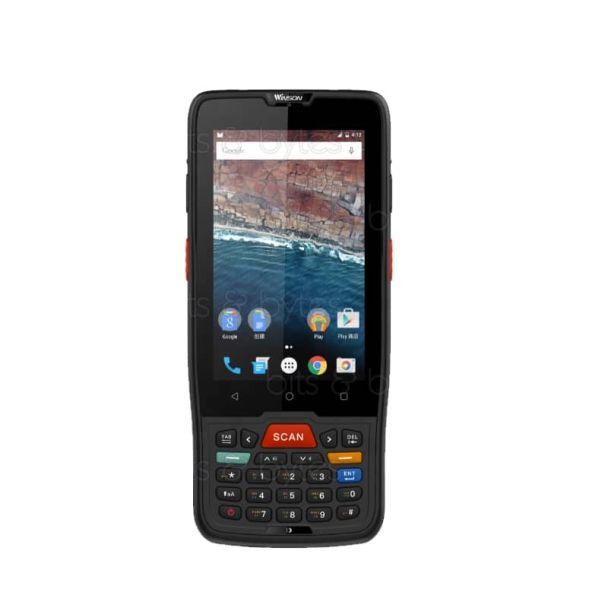

Winson WPC-9071 CMOS 2D Mobile Data Collector
Datasheet (PDF)
WPC-9071
Warehouse and Logistics Handheld Terminal
This new generation of 2D Slim scan engine comes with a high-performance reading engine, with excellent decoding capability to read various barcode types. It has a high level of endurance with IP65 industrial protection level. It supports Android 9 and upgradeable to Android 10. The scanner adapts to its environment with up to 20 different levels of brightness.
Ultra-high configuration
- Eight-core 2.0GHz high-performance processor
- Android 9 operating system
- Standard 16GB ROM + 2GB RAM Memory
- 4-inch screen with 800 x 480 resolution
- Screen visible under sunshine.
New Generation Scan Engine
Slim 1D/2D Long-Range scanner technology with 8 million pixels resolution and up to 5.5m distance scan range.
Large Capacity Battery
The included large capacity 4000mAh battery and refined power consumption will provide 15 hours working duration with only just 3 hours of charging time. In standby mode, the battery will last for 50 days.
You can also have a spare battery which you can replace when the battery in the device is depleted. You can purchase the battery from: www.bitsandbytesmalta.com
Apps
It will support a variety of Android apps, which you can install. It also supports specifically built software that is developed for your requirements.
Usability
This Data Collector is widely used in retail and logistics:
- Retail Industry
- Clothing/Garment industry
- Manufacture industry
- Warehouse inventory
- Ticket verification
- Logistics Express
- and other fields that require barcode scanning
What's included
- WPC-9071 Data Collector
- Battery
- 5V 2000mA USB Power Adapter
- USB Plug A to Type-C Cable
Technical Parameters
CPU | Eight-core 2.0GHz CPU |
OS | Android 9 (upgradable to Android 10) Operating System |
Memory | 2GB Ram |
16GB ROM | |
WiFi | 802.11 a/b/g/n Wireless Support |
Bluetooth | Support Bluetooth 4.0 |
GPS | Built-in A-GPS support |
Battery | 4.35V 4000mAh 15.2Wh |
Communication | 4G via SIM Card Slot |
Weight | 269g |
Memory Expansion | MicroSD Slot - up to 32GB |
Camera | 800W pixel with flash and auto-focus |
NFC | Optional NFC (Near Field Communication) with optimal 13.56M |
Monitor | 4.0 inches with 800 x 480 resolution |
Working Environment | Working Temperature: 10oC ~ 60oC |
Protection Level: IP65 | |
Drop Height: 1.5m |
Colour | Black |
---|---|
Scanner | CMOS |
Scan Engine | 2D |
Type | Hand-Held |
Interface | USB Type-C |
Storage | 16 GB |
