Digitus DS-55204 HDMI Extender Set over CAT6 or CAT7 (up to 60 meters)

DIGITUS 4K HDMI Extender Set, 4K/60Hz

4K HDMI 2.0 Extender Set, UHD 4K*2K@60 Hz 30/60 m over network cable (Cat 6, 6a, 7)

DESCRIPTION

The Digitus 4K Extender Set, 4K2K/60Hz offers an extender solution of up to 60 m for the highest demands - both for high-resolution graphics and for absolutely smooth video playback. It transmits digital 4K2K/60Hz video and audio signals to a maximum length of up to 30 m. 4K2K/30Hz content can be transmitted to up to 60 m. It supports CAT 6, 6A network cables. It consists of a transmitter as well as a receiver unit. It also includes two infrared units (transmitter and receiver) which enable the use of the remote control of the connected input source.

• Extends 4K2K/60Hz video content to up to 30m
• Extends 4K2K/30Hz video content to up to 60m
• Supports 4K Ultra HD (60Hz), 4096 x 2160p resolution
• Integrated IR interface - Easy to control the input source using a remote control
• Supports CAT 6 and CAT 6A network cables
• Supports HDCP 2.2

TECHNICAL DETAILS

• Extends 4K2K/60Hz video content to up to 30m
• Extends 4K2K/30Hz video content to up to 60m
• Supports 4K Ultra HD (60Hz), 4096 x 2160p resolution
• Integrated IR interface - Easy to control the input source using a remote control
• Supports CAT 6, CAT 6A and CAT 7 network cables
• Supports HDCP 2.2
• Offers simple and quick distribution for HDMI video signals - position your monitors wherever you wish
• Resolutions:
• 4K (60Hz), 4K (30Hz),
• 1080p, 1080i,
• 720p,
• 576p, 576i,
• 480p, 480i
• LED status display
• Max. transfer rate: 18 Gbps
• Color depth: 12 bit
• Supports compressed audio signals, such as DTS digital, Dolby digital (including DTS-HD and Dolby True HD)
• Supports uncompressed audio signals such as LPCM
• High quality aluminum casing
• Compact size, simple use and installation
• Power supply unit: DC 5V/1A
• Dimensions (1x unit): L 7.7 x W 5.6 x H 2.7 cm
• Colour: black
• HDTV Resolution max.: 4096 x 2160 Pixel, 60Hz
• HDTV Standard: Ultra HD 4K
• Category: CAT 6
• Distance: 60 m
• KVM: no
• PoE (Power over Ethernet): no
• Video connection ports: HDMI

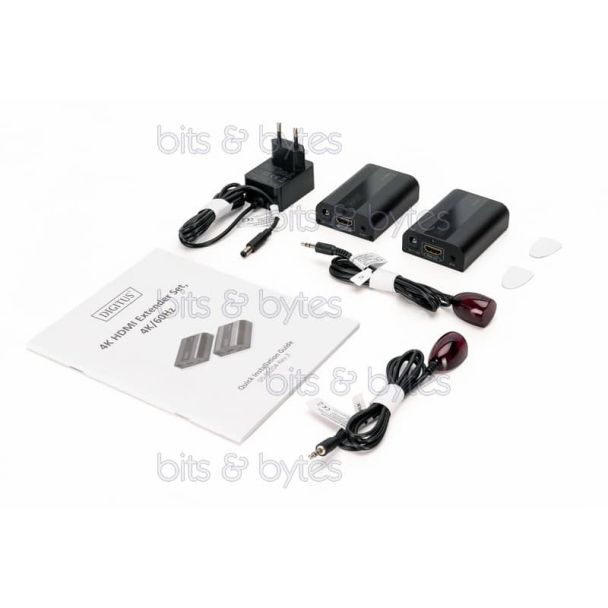

PACKAGE CONTENT

• 1x 4K HDMI Extender transmitter unit
• 1x 4K HDMI Extender receiver unit
• 2x Power supply unit: DC 5V/1A
• 1x IR transmitter unit
• 1x IR receiver unit
• 1x Instruction manual
