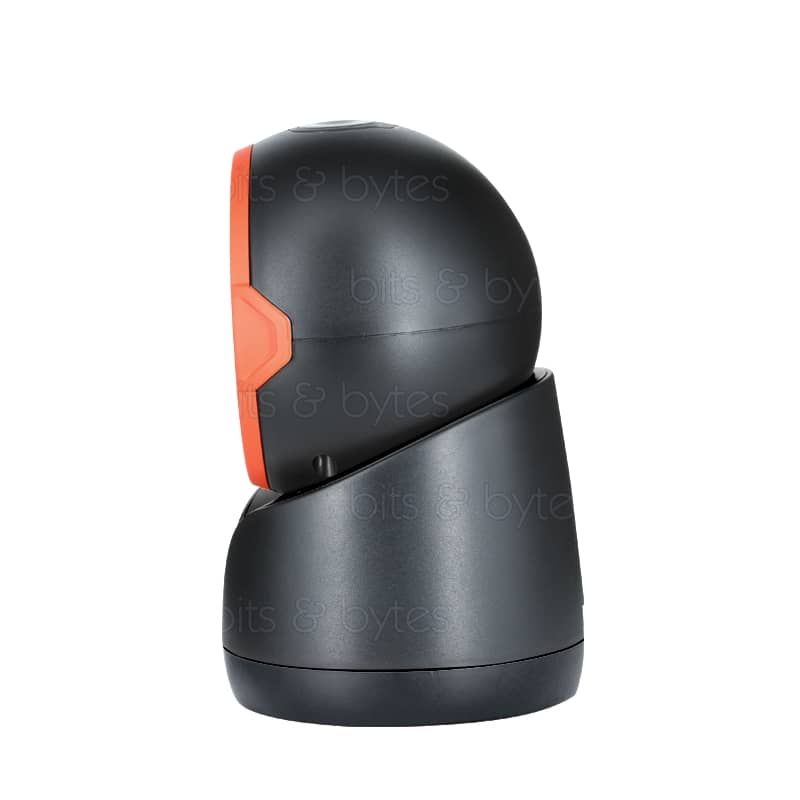

Winson WAI-5780 CMOS 2D Fixed Barcode Reader (USB cable)

Specifications

• Model: WAI-5780
• Dimensions: (LxWxH) 94mm x 100mm x 152mm
• Weight: ~265g
• Input Voltage: 5V DC +/-10%
• Current: 335mA +/-10%
• Interface Supported:
• USB
• Serial RS232 (optional)
• Field of View: 39^o(H), 29^o(V)
• Sensor Resolution:
• >5mil
• 640 x 640 Pixels
• Image Sensor: CMOS
• Light Source: Red LED
• Scan Speed: 60 fps
• Temperature: -20^oC - 65^oC
• Humididty: 5-90%
• Shock Dropt Test: 1.5m
• Ambient Light: 0 ~ 80000 Lux
• Language: Multiple Languages supported
• Min. Resolution: 0.127mm / 5mil (PCS 0.9)
• Scanning Angle:
• Pitch Angle: +/-65^o
• Skew Angle: +/-65^o
• Tilt Angle: +/-65^o
• Min PCS Value: >20% UPC / EAN13 (13mil)

Decoding Capability

• 1D:
• Codabar
• Code 39, Code 32, Code 93, Code 11, Code 128
• Interleaved 2of5
• NEC 2of5
• Straight 2of5 (Industrial), Standard 2of5 (IATA)
• Matrix 2of5
• GS1, GS1-128, GS1 DataBar Omnidirectional
• UPC-A, UPC-E
• EAN-8, EAN-13
• MSI Code
• DataBar Expanded
• Telepen
• 2D:
•
  PDF417
• QR Code
• DataMatrix
• Aztec
• ChinaPost (HongKong 2of5)
• KoreaPost
• HanXin code
• MaxiCode
• MicroPDF417
• GS1 Composite Code
• Codablock A, Codablock F
