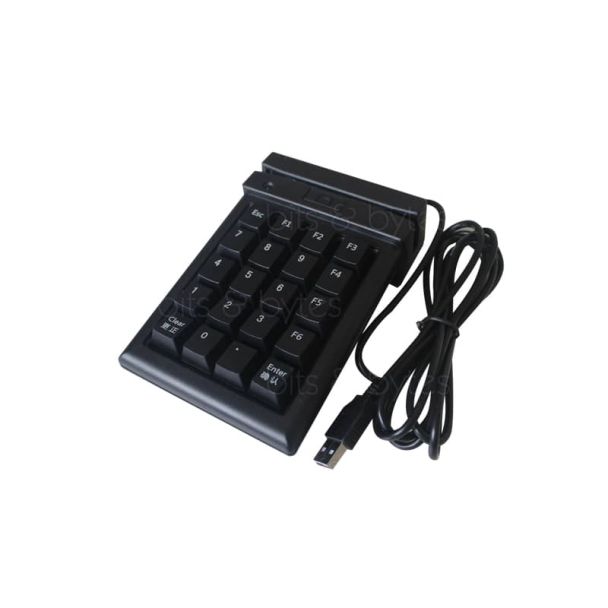

20 Keys USB Mini Keypad with MSR for POS

Magnetic Strip Card Reader:

• Magnetic Track 1,2,3
• Built-in decoder
• Bi-directional operation

Keypad:

• 20 keys pin pad
• ABS plastic cast case
• USB Interface

Specifications:

Mechanical:

• Weight: 450G
• Dimensions: 150mm (L) x 101mm (W) x 38mm (H)
• Case: ABS plastic

Environmental:

• Operating Temperature: 0 to +50 deg C
• Storage Temperature: -20 to +70 deg C
• Relative Humidity: 90%, non-condensing
• Vibration: 40 G’s
• Shock: 40 G’s

Reading Performance:

• Card feed speed: 10 to 120 mm/second
• Card feed force: 0.6oz, typical
• Magnetic head life: 1,000,000 passes min.
• Read error rate: < 1 in 1000 passes

Electrical:

• Voltage: 5V DC +/- 10%
• Current: 30 mA
• LED indicator: Green - Good read or ready to read
