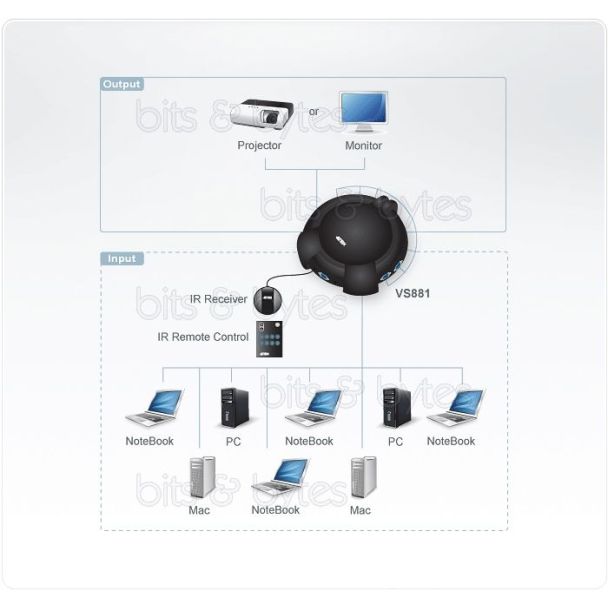

The VS881 is a video switch with 8 ports. It allows 8 independent computers or notebook computers to display their video outputs on a single monitor or on the screen via a multimedia projector. It provides a best solution of presentations and speeches to enterprises and education centers.
- Displays the video output of eight separate computers on a single monitor or projector
- Modern concentric design with intuitive connector layout for quick and easy access
- Superior video quality - up to 2048x1536; DDC; DDC2; DDC2B
- Automatic incoming signal selection (Auto)
- Displays the video output of eight separate computers on a single monitor or projector
- Modern concentric design with intuitive connector layout for quick and easy access
- Fast and convenient computer selection via pushbuttons or infrared (IR) remote control
- Extra-thin infrared handset allows easy storage in the mother unit
- Electronic switching for greater reliability and durability
- Easy installation - no software required - no confi guration
- Superior video quality - up to 2048x1536; DDC; DDC2; DDC2B
- Supports VGA, SVGA, XGA,UXGA, QXGA and multisync monitors
- Automatic incoming signal selection (Auto)
|
Video Input |
|
|
Interfaces |
8 x HDB-15 Male (Blue) |
|
Impedance |
75 Ώ |
|
Max. Distance |
1.8 m |
|
Video Output |
|
|
Interfaces |
1 x HDB-15 Female (Blue) |
|
Impedance |
75 Ώ |
|
Max. Distance |
10 m |
|
Video |
|
|
Max. Bandwidth |
300 MHz |
|
Max. Resolution |
Up to 1920 x 1440 |
|
Max. Distance |
Up to 10 m |
|
Control |
|
|
IR |
1 x Mini Stereo Jack Female (Black) |
|
Connectors |
|
|
Power |
1 x DC Jack |
|
Power Consumption |
DC5V:1.22W:6BTU |
|
Environmental |
|
|
Operating Temperature |
0 - 50°C |
|
Storage Temperature |
-20 - 60°C |
|
Humidity |
0 - 80% RH, Non-Condensing |
|
Physical Properties |
|
|
Housing |
Plastic |
|
Weight |
0.45 kg |
|
Dimensions (L x W x H) |
17.35 x 19.13 x 4.50 cm |
| Colour | Black |
|---|---|
| Interface | N/A |
| Connection | VGA |
| Ports | 8 |
| Quality | N/A |
| Length | N/A |
| Type | N/A |
