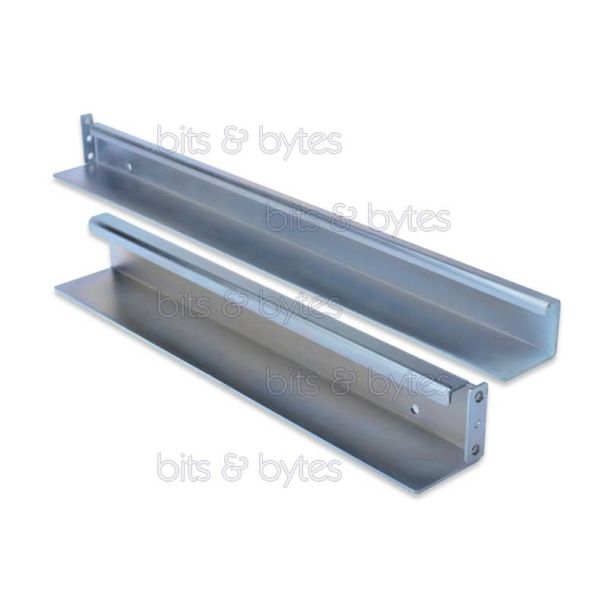

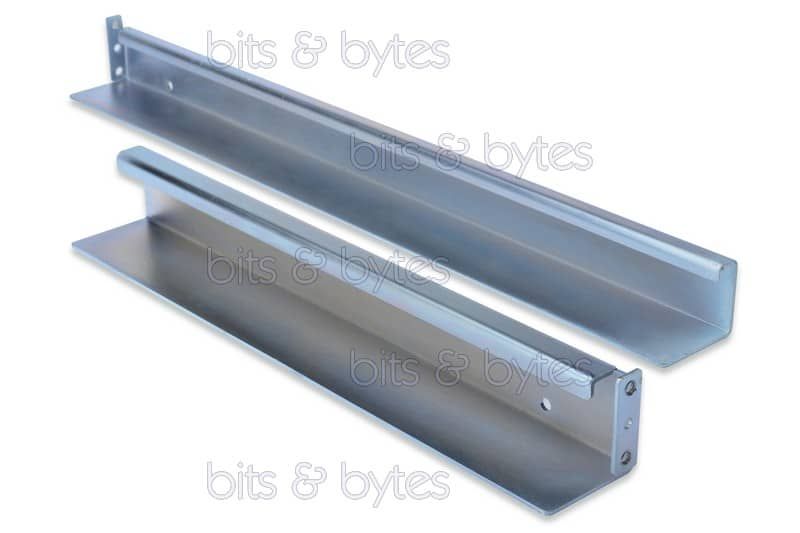

1U 19-inch L-Support Extendable Rails for Heavy Rackmount Hardware

Description

The L-Support Slide Rails help you to support the installation of heavy-duty components in DIGITUS 483 mm (19”) network or server cabinets. They are getting fixed on the four 483 mm (19”) profile rails. With galvanized steel sheets and a load capacity of up to 100 kg, they offer a perfect solution.

• Slide rails - L shape
• Rack depth: 800mm to 1000mm
• Variable in-depth: 500mm to 750mm
• 2 pieces set
• Easy installation

Technical details

• for fixed installation on the four 483 mm (19“) profile rails
• galvanized steel sheet with a strength of 2.00 mm
• Loading capacity: 100 kg
• 1 piece consists of two parts (internal and external profiling system)
• 1 set = 2 pieces
• Variable in-depth: 500 mm to 750 mm
• incl. fixing material
• Package content
• L support rail set (two rails - for left and right side of 19" profile rails)
• Fixing material
